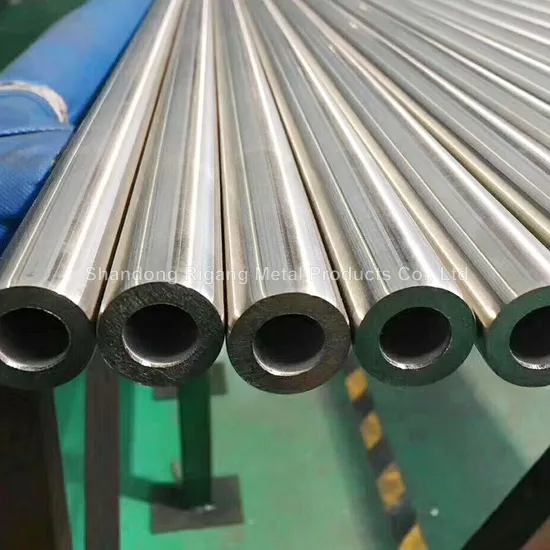

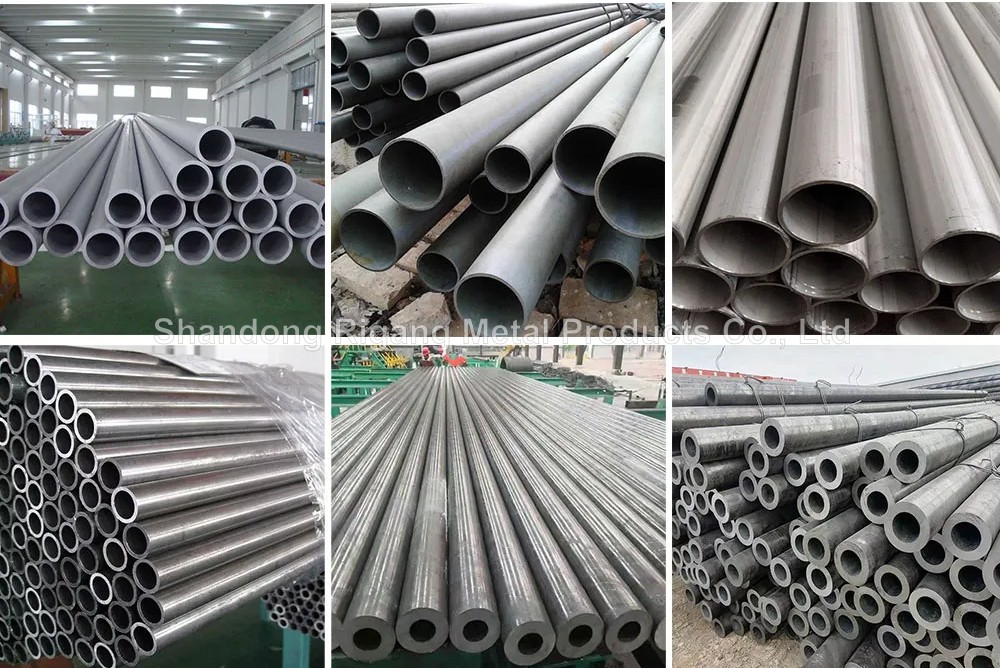

Monel 400 Alloy Pipe/Tube

‹

›

‹

  • Monel 400 Alloy Pipe/Tube
  • Monel 400 Alloy Pipe/Tube

›

MONEL nickel-copper alloy 400 (UNS N04400) is a solid-solution alloy that can be hardened only by cold working. It has high strength and toughness over a wide temperature range and excellent resistance to many corrosive environments. Alloy 400 is widely used in many fields, especially marine and chemical processing.
WhatsApp ：+86 13373658661
Email ：sale@sdrigang.com
Contact us
Send E-mail

Overview

Specification

Outside Diameter

6mm-630mm(seamless pipe)

9.5mm-1200mm(welding pipe)

or as customer's requirement

Wall Thickness

2.5mm-30mm(seamless pipe)

20.5mm-20mm(welding pipe)

or as customer's requirement

Length6M & as customer's requirement
StandardASTM, ASME, UNS, JIS, EN, AFNOR
Delivery time7-20 days subject to the clients' requirement and quantity
MOQ500KG


Chemical Composition

AlloyelementCSiMnSNiFeCu
Monel 400Min



63.0
28.0
Max0.30.52.00.024
2.534.0


Mechanical Properties

Aolly StatusTensile strength Rm Mpa Min.Yield strength R P 0. 2 Mpa Min.Elongation A 5 %
annealed48017035


Physical Properties

Density g/cm3Melting Point ℃
8.81300~1350


Characteristics of Monel 400

● Resistant to seawater and steam at high temperatures

● Excellent resistance to rapidly flowing brackish water or seawater

● Excellent resistance to stress corrosion cracking in most freshwaters

● Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated

● Excellent resistance to neutral and alkaline salt

● Resistance to chloride induced stress corrosion cracking

● Good mechanical properties from sub-zero temperatures up to 1020° F

● High resistance to alkalis


PRODUCT DISPLAY



CERTIFICATE

Inquiry

Send Now

Recommended

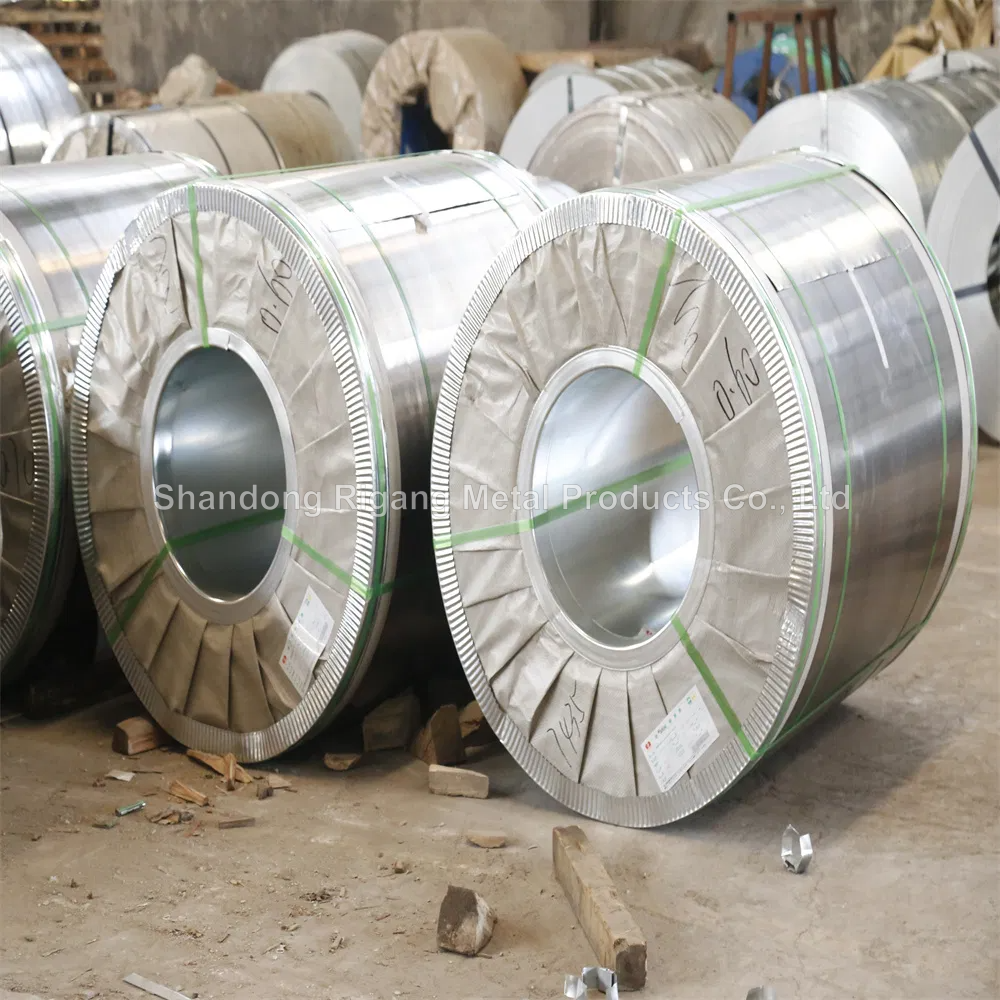

  • Monel 400 Alloy Coil/Strip
    Monel 400 Alloy Coil/Strip
    Get Best Price

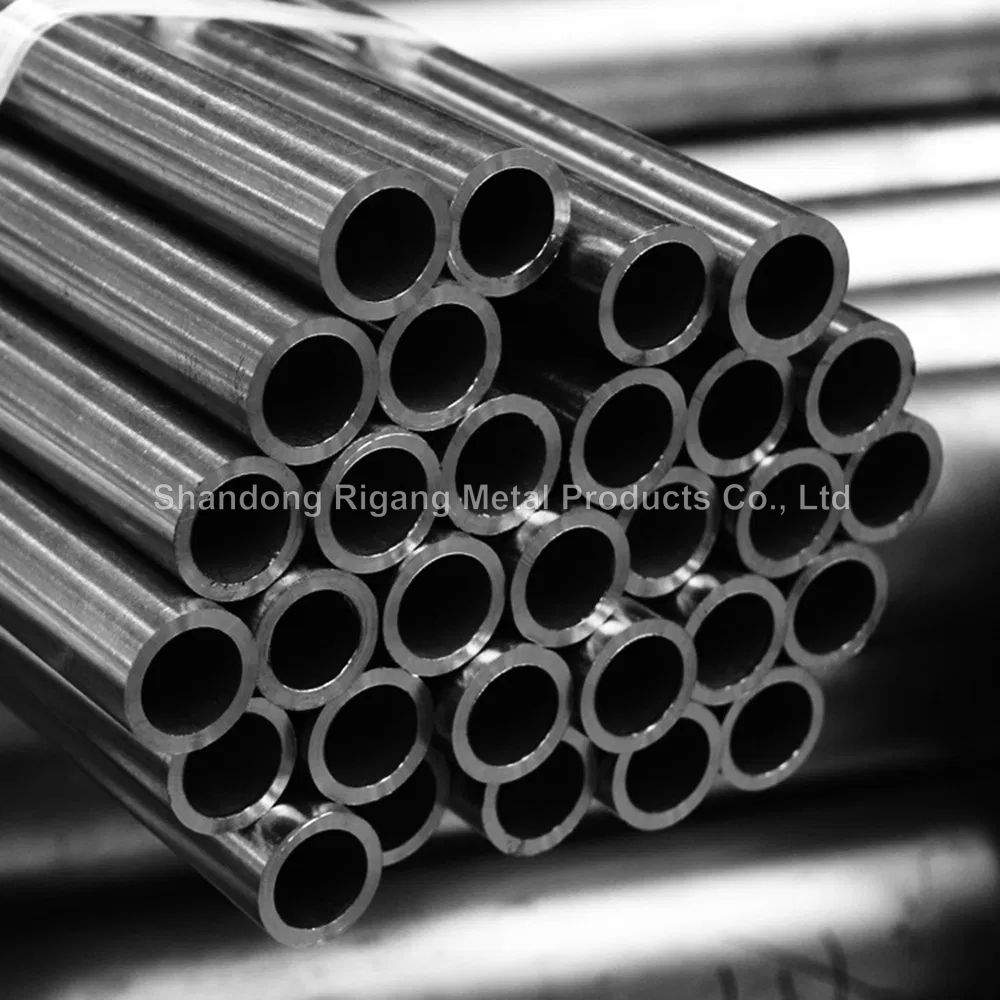

  • Monel K500 Alloy Pipe/Tube
    Monel K500 Alloy Pipe/Tube
    Get Best Price

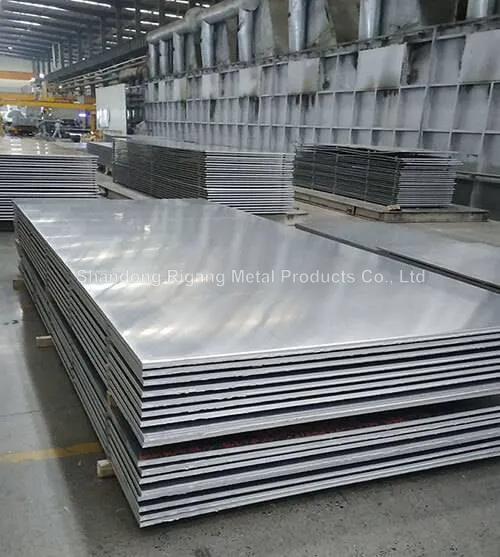

  • Monel K500 Alloy Plate/Sheet
    Monel K500 Alloy Plate/Sheet
    Get Best Price

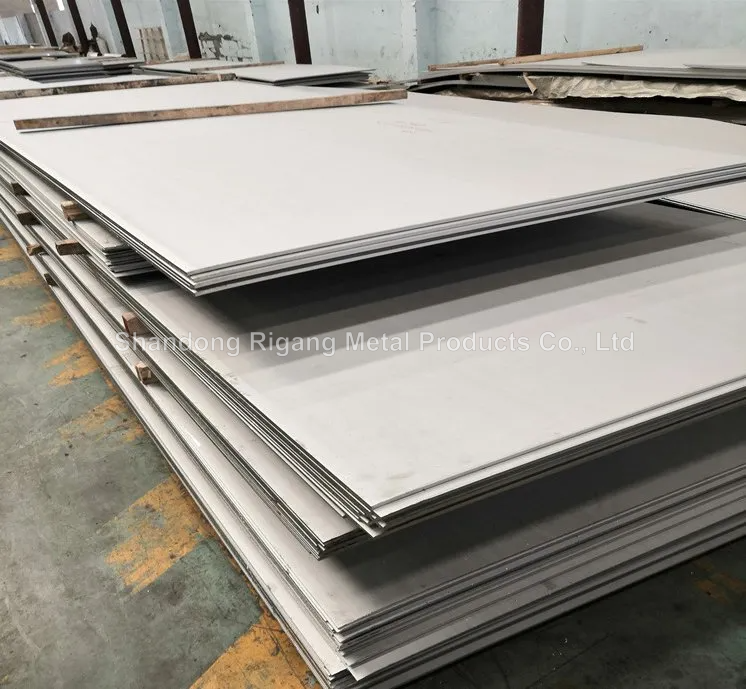

  • Monel 400 Alloy Plate/Sheet
